QM100TX1-HB HIGH POWER SWITCHING USE INSULATED TYPE

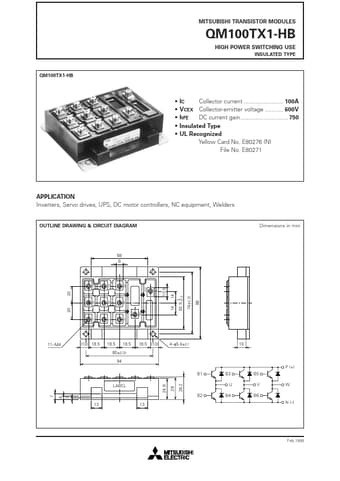

MITSUBISHI TRANSISTOR MODULES QM100TX1-HB HIGH POWER SWITCHING USE INSULATED TYPE QM100TX1-HB IC Collector current 100A VCEX Collector-emitter voltage 600V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, UPS, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 68 8 10.5 B1 B3 B5 (P)+ 20 14 0 62.5

QM100TX1-HB Datasheet (87.98 KB)

QM100TX1-HB Datasheet Preview — Preview of QM100TX1-HB PDF

Datasheet Details

Part number:

QM100TX1-HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

87.98 KB

Description:

High power switching use insulated type.
