QM150 Datasheet - Mitsubishi Electric Semiconductor

QM150 HIGH POWER SWITCHING USE INSULATED TYPE

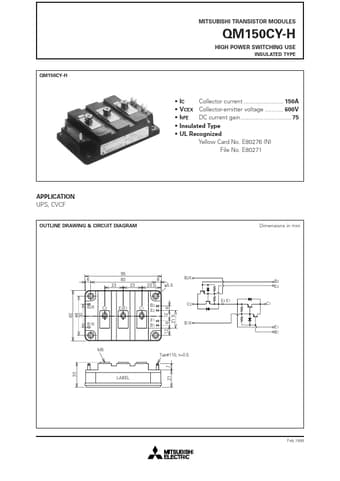

MITSUBISHI TRANSISTOR MODULES QM150CY-H HIGH POWER SWITCHING USE INSULATED TYPE QM150CY-H IC Collector current 150A VCEX Collector-emitter voltage 600V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION UPS, CVCF OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 6 23 95 80 23 23.5 6 φ5.5 B2X B2 E2 E 2 E1 B1X E1 B1 6 12 6 21.5 B2X 62 48 30 C2 E2E1 C1 B2 E2 C2 C1 B1X .

QM150 Datasheet (75.17 KB)

Preview of QM150 PDF
QM150 Datasheet Preview Page 2 QM150 Datasheet Preview Page 3

Datasheet Details

Part number:

QM150

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

75.17 KB

Description:

High power switching use insulated type.
