QM20DX-H Datasheet - Mitsubishi Electric Semiconductor

QM20DX-H MEDIUM POWER SWITCHING USE INSULATED TYPE

MITSUBISHI TRANSISTOR MODULES QM20DX-H MEDIUM POWER SWITCHING USE INSULATED TYPE QM20DX-H IC Collector current 20A VCEX Collector-emitter voltage 600V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 70 C1 C1 E1C2 E1 B1 60 φ1.7 B2 E1 φ5.5 Tab#110, t=0.5 8 6.35 2.

QM20DX-H Datasheet (67.54 KB)

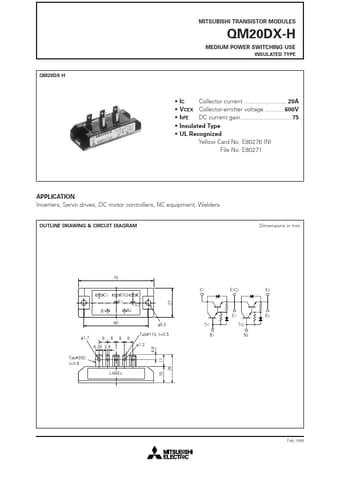

QM20DX-H Datasheet Preview — Preview of QM20DX-H PDF

Datasheet Details

Part number:

QM20DX-H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

67.54 KB

Description:

Medium power switching use insulated type.
