QM20KD-HB Transistor Module

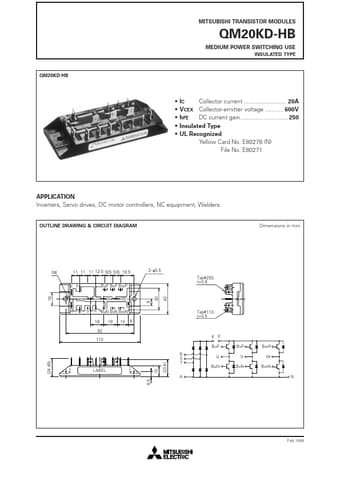

MITSUBISHI TRANSISTOR MODULES QM20KD-HB MEDIUM POWER SWITCHING USE INSULATED TYPE QM20KD-HB IC Collector current 20A VCEX Collector-emitter voltage 600V hFE DC current gain 250 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders. OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm R6 11 11 11 12.5 10.5 10.5 18.5 K P BuP BvP BwP U A T S R.

QM20KD-HB Datasheet (76.59 KB)

QM20KD-HB Datasheet Preview — Preview of QM20KD-HB PDF

Datasheet Details

Part number:

QM20KD-HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

76.59 KB

Description:

Transistor module.
