MC100ES6222 Datasheet, Buffer, Motorola

✔ MC100ES6222 Features

15 differential ECL/PECL outputs (4 output banks) 2 selectable differential ECL/PECL inputs Selectable ÷1 or ÷2 frequency divider 130 ps maximum device skew Supports DC t

✔ MC100ES6222 Application

that require the distribution of precisely aligned differential clock signals. Using SiGe technology and a f

PDF File Details

Motorola manufacturer logo

Part number:

MC100ES6222

Manufacturer:

Motorola

File Size:

328.29kb

Download:

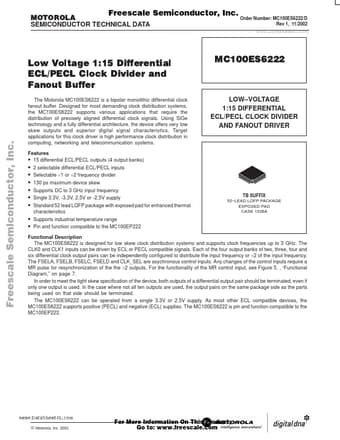

📄 Datasheet

Description:

Low voltage 1:15 differential ecl/pecl clock divider and fanout buffer. The MC100ES6222 is designed for low skew clock distribution systems and supports clock frequencies up to 3 GHz. The CLK0 and CLK1 inp
