MC100ES6111

LOW VOLTAGE 2.5/3.3V DIFFIERENTIAL ECL / PECL/ HSTL FANOUT BUFFER

MC100ES6111 Features

* inimum differential input voltage swing required to maintain device functionality c. VCMR (DC) is the crosspoint of the di

MC100ES6111 General Description

The MC100ES6111 is designed for low skew clock distribution systems and supports clock frequencies up to 2.7 GHz. The device accepts two clock sources. The CLKA input can be driven by ECL or PECL compatible signals, the CLKB input accepts HSTL compatible signals. The selected input signal is distrib.

MC100ES6111 Datasheet (179.51 KB)

Preview of MC100ES6111 PDF

Datasheet Details

Part number:

MC100ES6111

Manufacturer:

Motorola

File Size:

179.51 KB

Description:

Low voltage 2.5/3.3v diffierential ecl / pecl/ hstl fanout buffer.

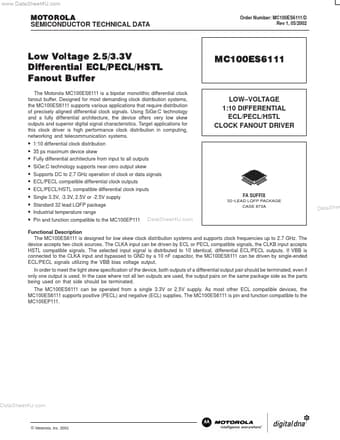

www.DataSheet4U.com MOTOROLA Order Number: MC100ES6111/D Rev 1, 05/2002 SEMICONDUCTOR TECHNICAL DATA Low Voltage 2.5/3.3V Differential ECL/PECL/HSTL.
