MC100ES6254 Datasheet - Motorola

MC100ES6254 2.5/3.3V Differential LVPECL 2x2 Clock Switch and Fanout Buffer

MC100ES6254 is designed for very skew critical differential clock distribution systems and supports clock frequencies from DC up to 3.0 GHz. Typical applications for the MC100ES6254 are primary clock distribution, switching and loopback systems of high-performance computer, networking and telecommun.

Freescale Semiconductor, Inc. MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order Number: MC100ES6254/D Rev. 3, 05/2004 2.5/3.3V Differential LVPECL 2x2 Clock Switch and Fanout Buffer The Motorola MC100ES6254 is a bipolar monolithic differential 2x2 clock switch and fanout buffer. Designed for most demanding clock distribution systems, the MC100ES6254 supports various applications that require to drive precisely aligned clock signals. The device is capable of driving and switching differential LVPECL s.

MC100ES6254 Features

* Fully differential architecture from input to all outputs

* SiGe technology supports near-zero output skew

* Supports DC to 3GHz operation1 of clock or data signals LVPECL compatible differential clock inputs and outputs LVCMOS compatible cont

MC100ES6254_MotorolaInc.pdf

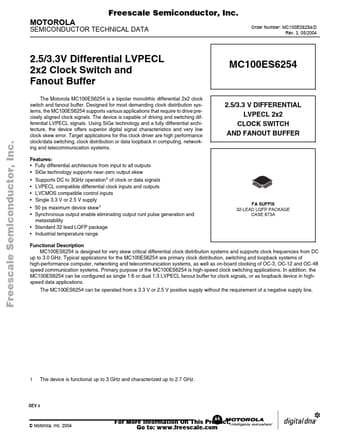

MC100ES6254 Datasheet Preview — Preview of MC100ES6254 PDF

Datasheet Details

Part number:

MC100ES6254

Manufacturer:

Motorola

File Size:

386.71 KB

Description:

2.5/3.3v differential lvpecl 2x2 clock switch and fanout buffer.
