MRF5S19090LSR3, MRF5S19090LR3 - N-CHANNEL RF POWER MOSFETs

Motorola

MRF5S19090LSR3 Description

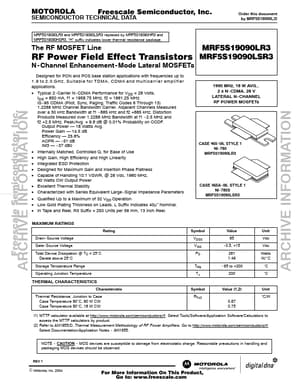

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Freescale Semiconductor, Inc.Order this document by MRF5S19090L/D MRF5S19090LR3 and MRF5S19090LSR3 replaced.
Value, P/N or DWG 95F786 100B220CP 500X 100B100CP 500X T494C105(1)050AS CDR33BX104AKWS 100B102JP 500X 100B4R3JP 500X T494D106(1)035AS T494X226(1)035AS.

MRF5S19090LSR3 Features

* ale. com MRF5S19090LR3 MRF5S19090LSR3 5 ARCHIVE INFORMATION 6
* 60 1860 1880 1900 1920 1940 1960 1980 2000 2020 2040 2060 2080 IRL, INPUT RETURN LOSS (dB) Freescale Semiconductor, Inc. TYPICAL CHARACTERISTICS η, DRAIN EFFICIENCY (%), G ps , POWER GAIN (dB) 40 35 30 25 20 Gps η ACPR IM3 VD

MRF5S19090LSR3 Applications

* with frequencies up to 1.9 to 2.0 GHz. Suitable for TDMA, CDMA and multicarrier amplifier applications.
* Typical 2 - Carrier N - CDMA Performance for VDD = 28 Volts, IDQ = 850 mA, f1 = 1958.75 MHz, f2 = 1961.25 MHz IS - 95 CDMA (Pilot, Sync, Paging, Traffic Codes 8 Through 13) 1.2288 MHz Ch
