MTV112A 8051 Embedded CRT Monitor Controller MASK Version

MTV112A Description

www.DataSheet4U.com MYSON TECHNOLOGY MTV112A (Rev 1.9) 8051 Embedded CRT Monitor Controller MASK Version .
The MTV112A micro-controller is an 8051 CPU core embedded device specially tailored to CRT monitor applications.

MTV112A Features

* l l l l l l l l l l l l l l 8051 core. 384-bytes internal RAM. 16K-bytes program Mask ROM. 14-channels 10V open-drain PWM DAC, 10 dedicated channels and 4 channels shared with I/O pin. 28 bi-direction I/O pin,12 dedicated pin,12 shared with DAC,4 shared with DDC/IIC interface. 5-output pin shared

MTV112A Applications

* It includes an 8051 CPU core, 384-byte SRAM, 14 built-in PWM DACs, DDC1/DDC2B interface, 24Cxx series EEPROM interface, A/D converter and a 16K-bytes internal program Mask ROM. BLOCK DIAGRAM STOUT P1.0-7 X1 P0.0-7 RD WR P0.0-7 RD WR XFR HSYNC H / VSYNC CONTROL VSYNC HBLANK VBLANK X2 8051 CO

📥 Download Datasheet

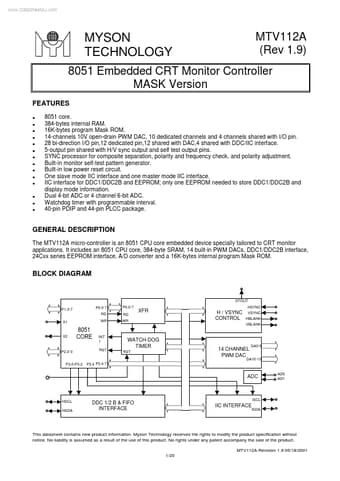

Preview of MTV112A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTV112A
Manufacturer
Myson
File Size
189.84 KB
Datasheet
MTV112A_Myson.pdf
Description
8051 Embedded CRT Monitor Controller MASK Version
