MTV118 On-Screen-Display

MTV118 Description

www.DataSheet4U.com MYSON TECHNOLOGY .
MTV118 is designed for LCD monitor applications to display the built-in characters or fonts onto an LCD monitor screen.

MTV118 Features

* Horizontal sync input may be up to 120 KHz. Acceptable wide-range pixel clock up to 96MHz from XIN pin. Full-screen display consists of 15 (rows) by 30 (columns) characters. 12 x 18 dot matrix per character. Total of 256 characters and graphic fonts

MTV118 Applications

* to display the built-in characters or fonts onto an LCD monitor screen. The display operates by transferring data and control information from the micro controller to the RAM through a serial data interface. It can execute full screen displays automatically and specific functions such as character b

📥 Download Datasheet

Preview of MTV118 PDF

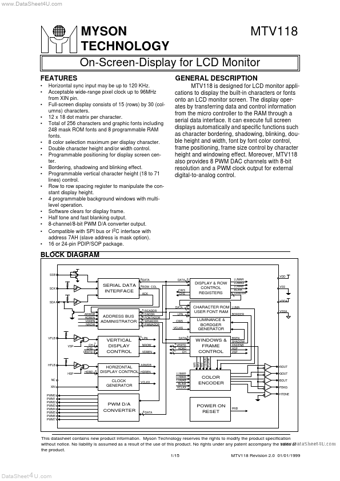

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTV118
Manufacturer
Myson
File Size
406.79 KB
Datasheet
MTV118_Myson.pdf
Description
On-Screen-Display
