MTV112M 8051 Embedded CRT Monitor Controller Flash Version

MTV112M Description

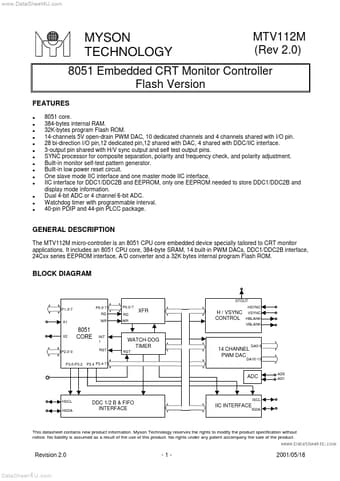

www.DataSheet4U.com MYSON TECHNOLOGY MTV112M (Rev 2.0) 8051 Embedded CRT Monitor Controller Flash Version .
The MTV112M micro-controller is an 8051 CPU core embedded device specially tailored to CRT monitor applications.

MTV112M Features

* l l l l l l l l l l l l l l 8051 core. 384-bytes internal RAM. 32K-bytes program Flash ROM. 14-channels 5V open-drain PWM DAC, 10 dedicated channels and 4 channels shared with I/O pin. 28 bi-direction I/O pin,12 dedicated pin,12 shared with DAC, 4 shared with DDC/IIC interface. 3-output pin shared

MTV112M Applications

* It includes an 8051 CPU core, 384-byte SRAM, 14 built-in PWM DACs, DDC1/DDC2B interface, 24Cxx series EEPROM interface, A/D converter and a 32K bytes internal program Flash ROM. BLOCK DIAGRAM STOUT P1.0-7 X1 P0.0-7 RD WR P0.0-7 RD WR XFR HSYNC H / VSYNC CONTROL VSYNC HBLANK VBLANK X2 8051 C
