NCE20P09S Datasheet, Mosfet, NCE Power Semiconductor

NCE20P09S Features

  • Mosfet
  • VDS = -20V,ID = -9A RDS(ON) < 28mΩ @ VGS=-4.5V RDS(ON) < 40mΩ @ VGS=-2.5V
  • High power and current handing capability
  • Lead free product is acquired

PDF File Details

Part number:

NCE20P09S

Manufacturer:

NCE Power Semiconductor

File Size:

392.33kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The NCE20P09S uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low a

Datasheet Preview: NCE20P09S 📥 Download PDF (392.33kb)

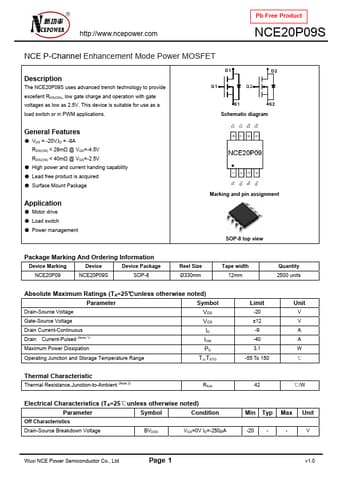

Page 2 of NCE20P09S Page 3 of NCE20P09S

NCE20P09S Application

  • Applications D1 G1 G2 D2 S1 S2 Schematic diagram General Features
  • VDS = -20V,ID = -9A RDS(ON) < 28mΩ @ VGS=-4.5V RDS(ON) < 40mΩ @ VG
