NCE20PK0302U

P-Channel Enhancement Mode Power MOSFET

NCE Power Semiconductor

Download Datasheet (298.17 KB)

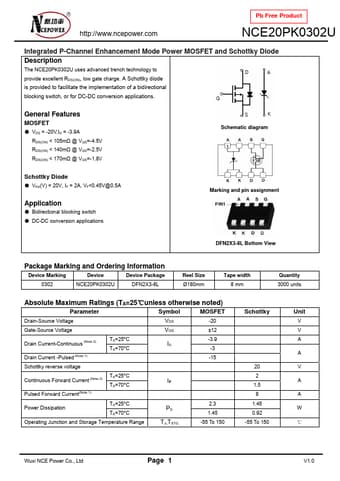

NCE20PK0302U Datasheet Preview — Preview of NCE20PK0302U Datasheet

Datasheet Details

Part number:

NCE20PK0302U

Manufacturer:

NCE Power Semiconductor

File Size:

298.17 KB

Description:

P-channel enhancement mode power mosfet.
http://www.ncepower.com Pb Free Product NCE20PK0302U Integrated P-Channel Enhancement Mode Power M.
The NCE20PK0302U uses advanced trench technology to provide excellent RDS(ON), low gate charge. A Sc.

✔ NCE20PK0302U Features

MOSFET
VDS = -20V,ID = -3.9A RDS(ON) < 105mΩ @ VGS=-4.5V RDS(ON) < 140mΩ @ VGS=-2.5V RDS(ON) < 170mΩ @ VGS=-1.8V Schematic diagram Schottky Diode
VKA(V) = 20V, IF =

✔ NCE20PK0302U Application

General Features MOSFET
VDS = -20V,ID = -3.9A RDS(ON) < 105mΩ @ VGS=-4.5V RDS(ON) < 140mΩ @ VGS=-2.5V RD
