NCE20PK0302J Datasheet, Mosfet, NCE Power Semiconductor

NCE20PK0302J Features

  • Mosfet MOSFET
  • VDS = -20V,ID = -3A RDS(ON) < 105mΩ @ VGS=-4.5V RDS(ON) < 140mΩ @ VGS=-2.5V RDS(ON) < 170mΩ @ VGS=-1.8V Schematic diagram Schottky Diode
  • VKA(V) = 20V, IF =

PDF File Details

Part number:

NCE20PK0302J

Manufacturer:

NCE Power Semiconductor

File Size:

331.31kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The NCE20PK0302J uses advanced trench technology to provide excellent RDS(ON), low gate charge. A Schottky diode is provided to facil

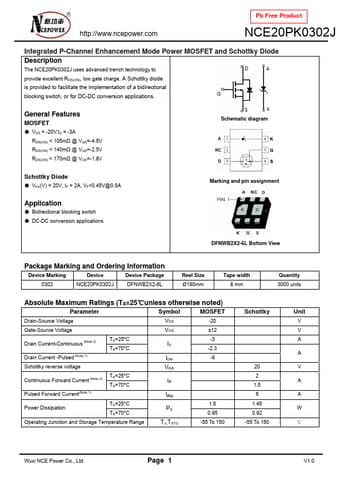

Datasheet Preview: NCE20PK0302J 📥 Download PDF (331.31kb)
Page 2 of NCE20PK0302J Page 3 of NCE20PK0302J

NCE20PK0302J Application

  • Applications General Features MOSFET
  • VDS = -20V,ID = -3A RDS(ON) < 105mΩ @ VGS=-4.5V RDS(ON) < 140mΩ @ VGS=-2.5V RDS(ON) < 170mΩ @ VGS=-
