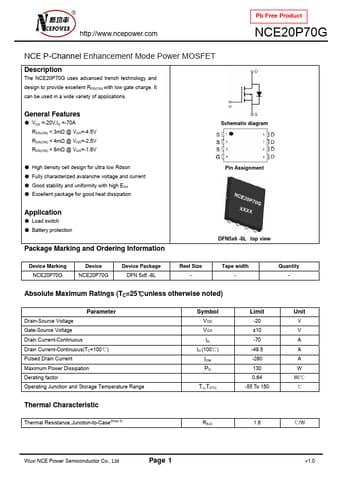

NCE20P70G Datasheet, Mosfet, NCE Power Semiconductor

NCE20P70G Features

• Mosfet
• VDS =-20V,ID =-70A RDS(ON) < 3mΩ @ VGS=-4.5V RDS(ON) < 4mΩ @ VGS=-2.5V RDS(ON) < 8mΩ @ VGS=-1.8V
• High density cell design for ultra low Rdson
• Fully charact

PDF File Details

Part number:

NCE20P70G

Manufacturer:

NCE Power Semiconductor

File Size:

347.62kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The NCE20P70G uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide

NCE20P70G Application

• Applications General Features
• VDS =-20V,ID =-70A RDS(ON) < 3mΩ @ VGS=-4.5V RDS(ON) < 4mΩ @ VGS=-2.5V RDS(ON) < 8mΩ @ VGS=-1.8V
