NCE2301 Datasheet, Mosfet, NCE Power Semiconductor

NCE2301 Features

  • Mosfet
  • VDS = -20V,ID = -3A RDS(ON) < 140mΩ @ VGS=-2.5V RDS(ON) < 110mΩ @ VGS=-4.5V Schematic diagram
  • High power and current handing capability
  • Lead free product

PDF File Details

Part number:

NCE2301

Manufacturer:

NCE Power Semiconductor

File Size:

287.93kb

Download:

📄 Datasheet

Description:

Nce p-channel enhancement mode power mosfet. The NCE2301 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

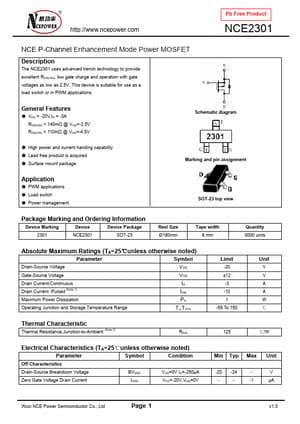

Datasheet Preview: NCE2301 📥 Download PDF (287.93kb)
Page 2 of NCE2301 Page 3 of NCE2301

NCE2301 Application

  • Applications General Features
  • VDS = -20V,ID = -3A RDS(ON) < 140mΩ @ VGS=-2.5V RDS(ON) < 110mΩ @ VGS=-4.5V Schematic diagram
