NCE2301F Datasheet, Mosfet, NCE Power Semiconductor

NCE2301F Features

• Mosfet
• VDS = -20V,ID = -2 A RDS(ON) < 150mΩ @ VGS=-2.5V RDS(ON) < 120mΩ @ VGS=-4.5V D G S Schematic diagram
• High power and current handing capability
• Lead free

PDF File Details

Part number:

NCE2301F

Manufacturer:

NCE Power Semiconductor

File Size:

210.18kb

Download:

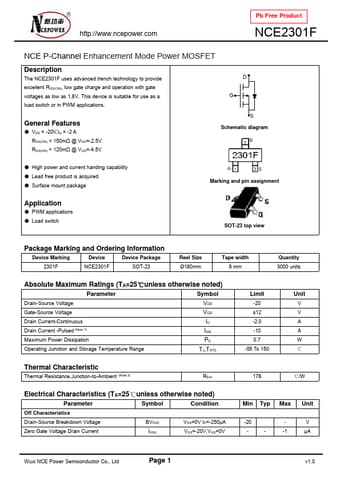

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The NCE2301F uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

NCE2301F Application

• Applications General Features
• VDS = -20V,ID = -2 A RDS(ON) < 150mΩ @ VGS=-2.5V RDS(ON) < 120mΩ @ VGS=-4.5V D G S Schematic diagram
