NCE2301A Datasheet, Mosfet, NCE Power Semiconductor

NCE2301A Features

• Mosfet
• VDS = -15V,ID = -3.0A RDS(ON) < 70mΩ @ VGS=-2.5V RDS(ON) < 80mΩ @ VGS=-4.5V
• High power and current handing capability
• Lead free product is acquired

PDF File Details

Part number:

NCE2301A

Manufacturer:

NCE Power Semiconductor

File Size:

260.84kb

Download:

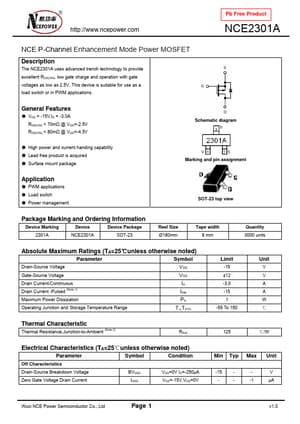

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The NCE2301A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

NCE2301A Application

• Applications General Features
• VDS = -15V,ID = -3.0A RDS(ON) < 70mΩ @ VGS=-2.5V RDS(ON) < 80mΩ @ VGS=-4.5V
• High power and curre
