NCE2301B Datasheet, Mosfet, NCE Power Semiconductor

NCE2301B Features

• Mosfet
• VDS = -20V,ID = -2.6A RDS(ON) < 160mΩ @ VGS=-2.5V RDS(ON) < 120mΩ @ VGS=-4.5V D G S Schematic diagram
• High power and current handing capability
• Lead free

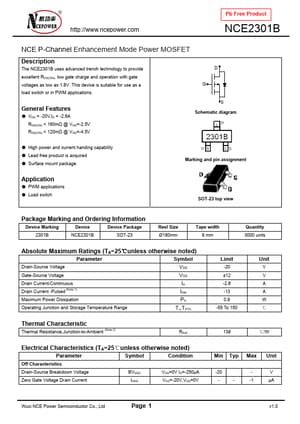

PDF File Details

Part number:

NCE2301B

Manufacturer:

NCE Power Semiconductor

File Size:

291.14kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The NCE2301B uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

NCE2301B Application

• Applications General Features
• VDS = -20V,ID = -2.6A RDS(ON) < 160mΩ @ VGS=-2.5V RDS(ON) < 120mΩ @ VGS=-4.5V D G S Schematic diagram
