NCE2301C Datasheet, Mosfet, NCE Power Semiconductor

NCE2301C Features

  • Mosfet
  • VDS = -15V,ID = -2.6A RDS(ON) < 120mΩ @ VGS=-2.5V RDS(ON) < 80mΩ @ VGS=-4.5V D G S Schematic diagram
  • High power and current handing capability
  • Lead free

PDF File Details

Part number:

NCE2301C

Manufacturer:

NCE Power Semiconductor

File Size:

206.04kb

Download:

📄 Datasheet

Description:

P-channel enhancement mode power mosfet. The NCE2301C uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as

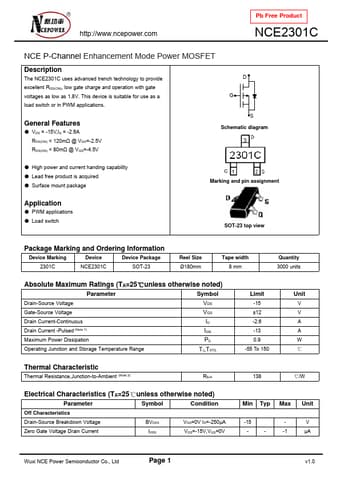

Datasheet Preview: NCE2301C 📥 Download PDF (206.04kb)
Page 2 of NCE2301C Page 3 of NCE2301C

NCE2301C Application

  • Applications General Features
  • VDS = -15V,ID = -2.6A RDS(ON) < 120mΩ @ VGS=-2.5V RDS(ON) < 80mΩ @ VGS=-4.5V D G S Schematic diagram
