NCE40H12 Datasheet, mosfet equivalent, NCE Power Semiconductor

NCE40H12 Features

  • Mosfet
  • VDS =40V,ID =120A RDS(ON) <4 mΩ @ VGS=10V RDS(ON) <7 mΩ @ VGS=4.5V
  • High density cell design for ultra low Rdson
  • Fully characterized avalanche voltage and c

PDF File Details

Part number:

NCE40H12

Manufacturer:

NCE Power Semiconductor

File Size:

364.13kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The NCE40H12 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide v

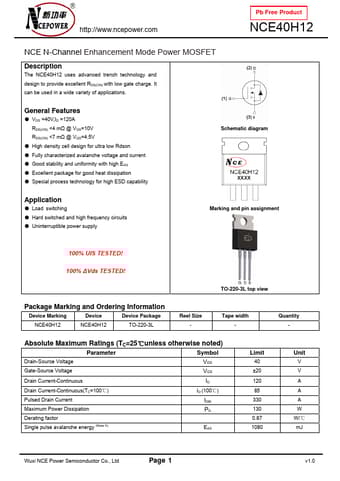

Datasheet Preview: NCE40H12 📥 Download PDF (364.13kb)
Page 2 of NCE40H12 Page 3 of NCE40H12

NCE40H12 Application

  • Applications General Features
  • VDS =40V,ID =120A RDS(ON) <4 mΩ @ VGS=10V RDS(ON) <7 mΩ @ VGS=4.5V
  • High density cell design for
