NCE40H20A Datasheet, Mosfet, NCE Power Semiconductor

NCE40H20A Features

  • Mosfet
  • VDS = 40V,ID =200A RDS(ON) < 2.6mΩ @ VGS=10V (Typ:2.0mΩ)
  • Special process technology for high ESD capability
  • High density cell design for ultra low Rdson

PDF File Details

Part number:

NCE40H20A

Manufacturer:

NCE Power Semiconductor

File Size:

323.22kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The NCE40H20A uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide

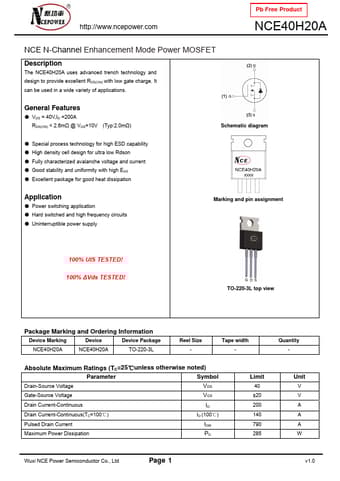

Datasheet Preview: NCE40H20A 📥 Download PDF (323.22kb)
Page 2 of NCE40H20A Page 3 of NCE40H20A

NCE40H20A Application

  • Applications General Features
  • VDS = 40V,ID =200A RDS(ON) < 2.6mΩ @ VGS=10V (Typ:2.0mΩ)
  • Special process technology for high E
