NCE40H12I Datasheet, Mosfet, NCE Power Semiconductor

NCE40H12I Features

  • Mosfet
  • VDS =40V,ID =120A RDS(ON) <4mΩ @ VGS=10V RDS(ON) <7mΩ @ VGS=4.5V
  • High density cell design for ultra low Rdson
  • Fully characterized avalanche voltage and cur

PDF File Details

Part number:

NCE40H12I

Manufacturer:

NCE Power Semiconductor

File Size:

356.81kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The NCE40H12I uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide

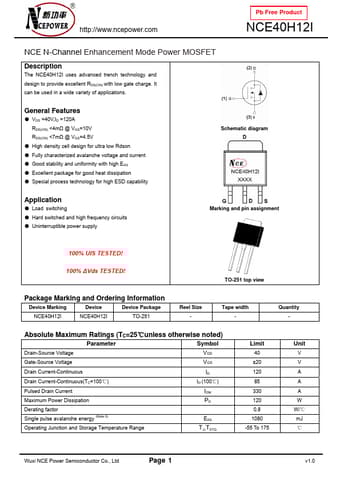

Datasheet Preview: NCE40H12I 📥 Download PDF (356.81kb)
Page 2 of NCE40H12I Page 3 of NCE40H12I

NCE40H12I Application

  • Applications General Features
  • VDS =40V,ID =120A RDS(ON) <4mΩ @ VGS=10V RDS(ON) <7mΩ @ VGS=4.5V
  • High density cell design for ul
