NCEAP40T13AGU - Automotive N-Channel Super Trench Power MOSFET

NCE Power Semiconductor

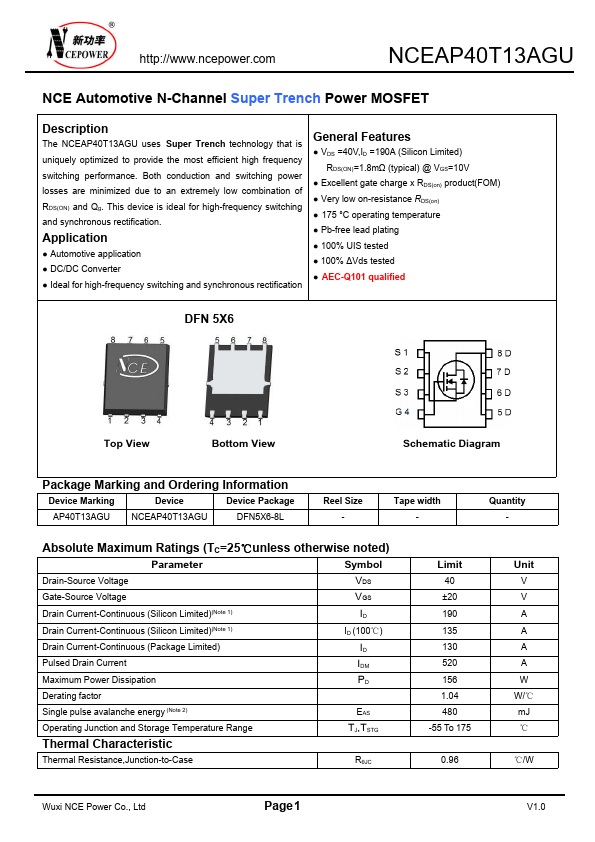

NCEAP40T13AGU Datasheet Preview — Preview of NCEAP40T13AGU PDF

Datasheet Details

Part number	NCEAP40T13AGU
Manufacturer	NCE Power Semiconductor
File Size	527.80 KB
Description	Automotive N-Channel Super Trench Power MOSFET
Datasheet	NCEAP40T13AGU-NCEPowerSemiconductor.pdf

NCEAP40T13AGU Product details

Description

The NCEAP40T13AGU uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Automotive application DC/DC Converter Ideal for high-frequency switching and synchronous rectification General

Features

VDS =40V,ID =190A (Silicon Limited) RDS(ON)=1.8mΩ (typical) @ VGS=10V.
Excellent gate charge x RDS(on) product(FOM).
Very low on-resistance RDS(on).
175 °C operating temperature.
Pb-free lead plating.
100% UIS tested.
100% ΔVds tested.
AEC-Q101 qualified DFN 5X6 Top View Bottom View Schematic Diagram Package Marking and Ordering Information Device Marking Device Device Package AP40T13AGU NCEAP40T13AGU DFN5X6-8L Reel Size - Tape width - Quanti.
