NCEAP0178AK Automotive N-Channel Super Trench Power MOSFET

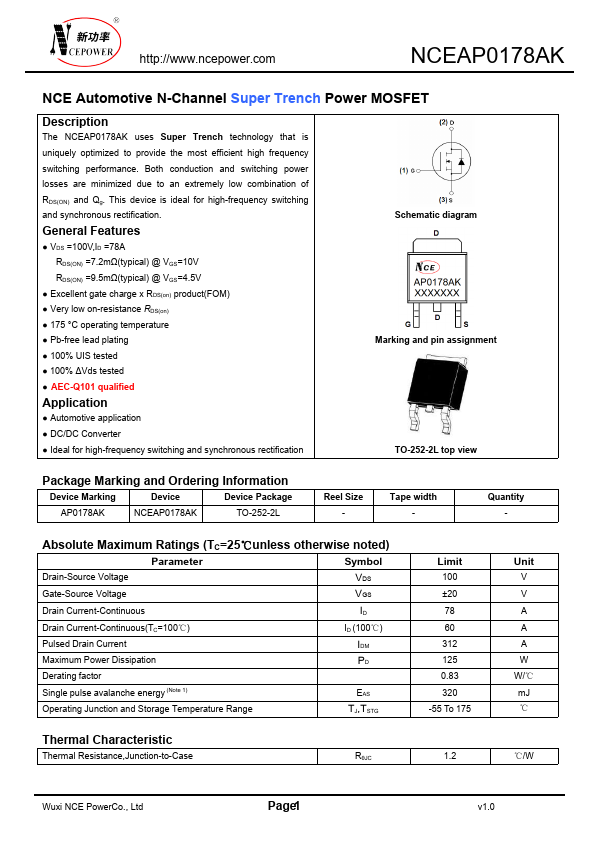

📥 Download Datasheet Datasheet Preview Page 1

Description

http://www.ncepower.com NCEAP0178AK NCE Automotive N-Channel Super Trench Power MOSFET .
The NCEAP0178AK uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

📥 Download Datasheet

Preview of NCEAP0178AK PDF

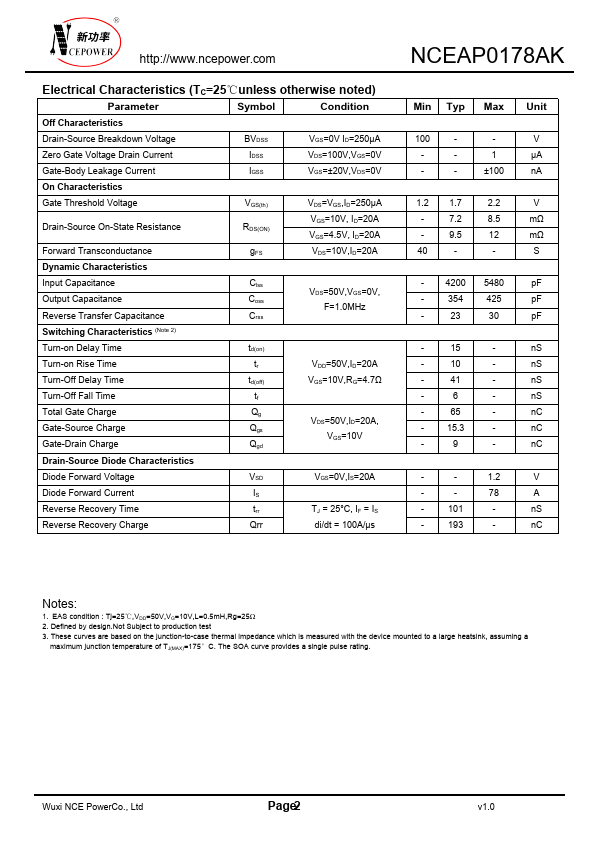

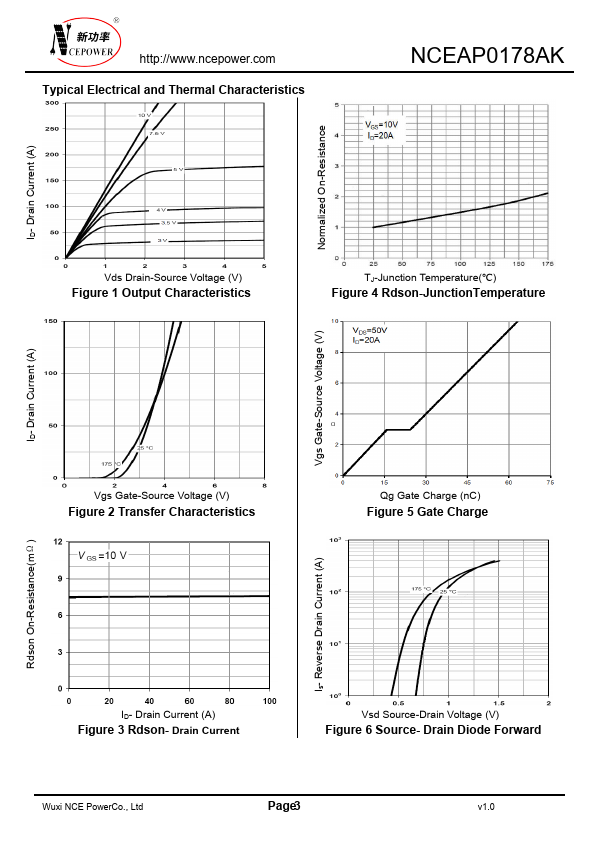

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NCEAP0178AK
Manufacturer
NCE Power Semiconductor
File Size
548.55 KB
Datasheet
NCEAP0178AK-NCEPowerSemiconductor.pdf
Description
Automotive N-Channel Super Trench Power MOSFET

Features

* VDS =100V,ID =78A RDS(ON) =7.2mΩ(typical) @ VGS=10V RDS(ON) =9.5mΩ(typical) @ VGS=4.5V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating
* 100% UIS tested
* 100% ΔVds tested
* AEC-Q1

Applications

* that require
