NCEAP40T20AGU - Automotive N-Channel Super Trench Power MOSFET

NCE Power Semiconductor

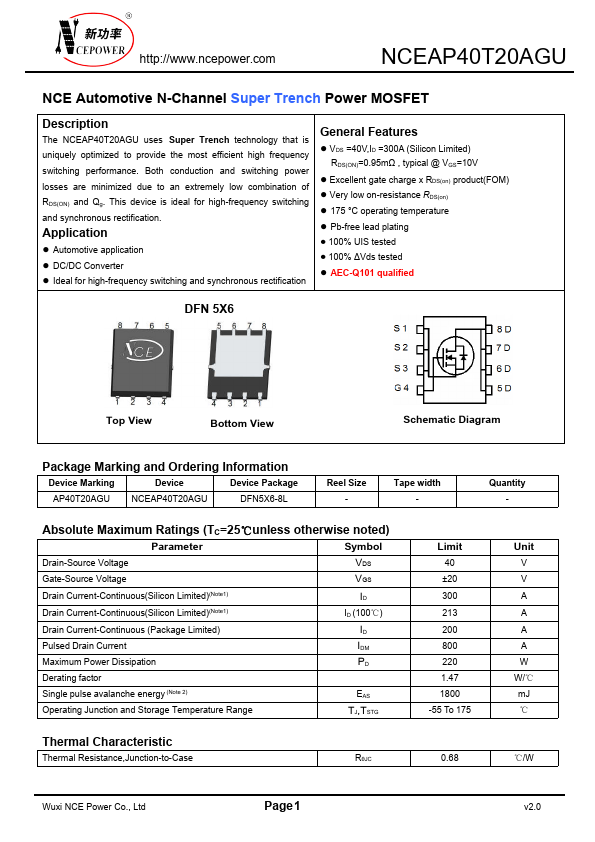

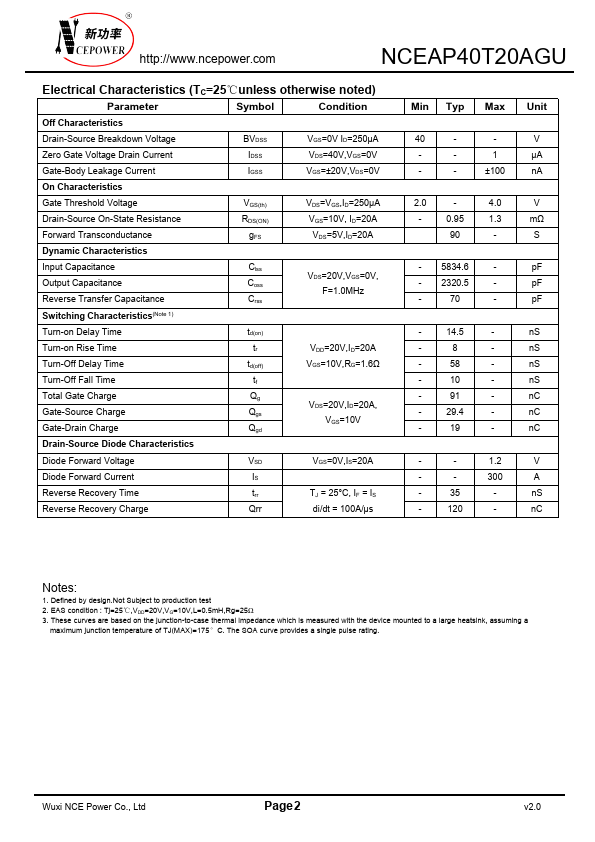

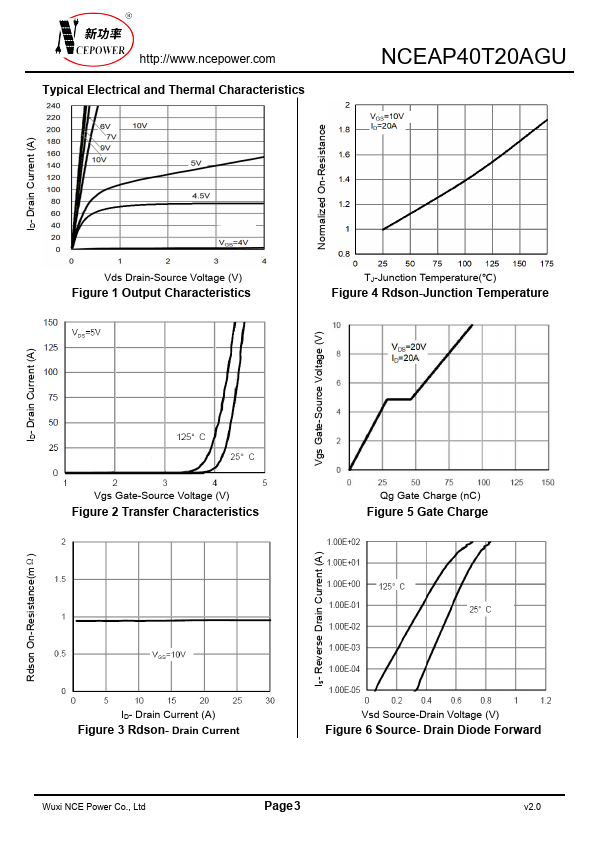

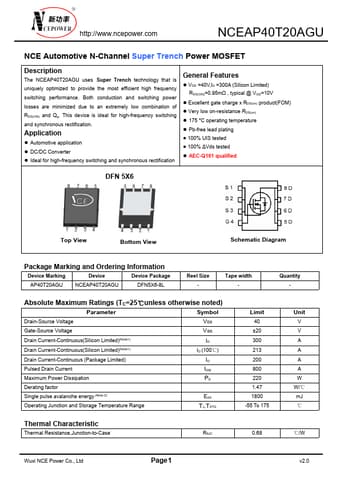

NCEAP40T20AGU Datasheet Preview — Preview of NCEAP40T20AGU PDF

Datasheet Details

Part number	NCEAP40T20AGU
Manufacturer	NCE Power Semiconductor
File Size	428.05 KB
Description	Automotive N-Channel Super Trench Power MOSFET
Datasheet	NCEAP40T20AGU-NCEPowerSemiconductor.pdf

NCEAP40T20AGU Product details

Description

The NCEAP40T20AGU uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Automotive application DC/DC Converter Ideal for high-frequency switching and synchronous rectification General

Features

VDS =40V,ID =300A (Silicon Limited) RDS(ON)=0.95mΩ , typical @ VGS=10V.
Excellent gate charge x RDS(on) product(FOM).
Very low on-resistance RDS(on).
175 °C operating temperature.
Pb-free lead plating.
100% UIS tested.
100% ΔVds tested.
AEC-Q101 qualified DFN 5X6 Top View Bottom View Schematic Diagram Package Marking and Ordering Information Device Marking Device Device Package AP40T20AGU NCEAP40T20AGU DFN5X6-8L Reel Size - Tape width - Quant.
