2SK2411 - SWITCHING N-CHANNEL POWER MOSFET

Datasheet Summary

Description

The 2SK2411 is N-Channel MOS Field Effect Transistor designed for high speed switching applications.

(in millimeter) 10.6 MAX.

5.9 MIN.

Features

  • Low On-Resistance RDS(on)1 = 40 mΩ MAX. (@ VGS = 10 V, ID = 15 A) RDS(on)2 = 60 mΩ MAX. (@ VGS = 4 V, ID = 15 A) 4 1.3 ±0.2 0.75 ±0.1 2.54 1 2 3.
  • Low Ciss Ciss = 1500 pF TYP.
  • Built-in G-S Gate Protection Diodes.
  • High Avalanche Capability Ratings.

📥 Download Datasheet

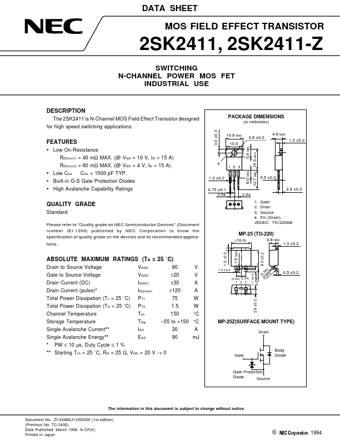

Datasheet preview – 2SK2411
