2SJ355

P-Channel MOSFET

NEC

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	Renesas Electronics Corporation	2SJ355	2SJ355-T1-AZ	Power Field-Effect Transistor, 2A, 30V, P-Channel MOSFET	Rochester Electronics	50	100000 units	$0.42	🛒 Buy Now

📥 Download PDF (67.68 KB)

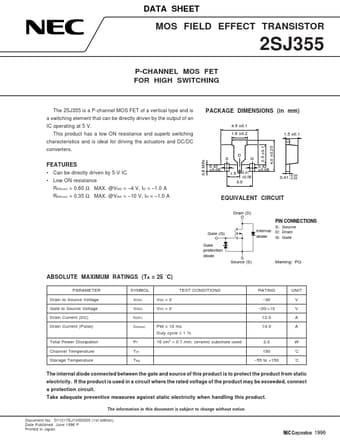

2SJ355 Datasheet Preview Page 1 — Preview of 2SJ355 Datasheet

Datasheet Details

Part number:

2SJ355

Manufacturer:

NEC

File Size:

67.68 KB

Download:

📄 Download 2SJ355 Datasheet PDF

Description:

P-channel mosfet.
DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SJ355 P-CHANNEL MOS FET FOR HIGH SWITCHING The 2SJ355 is .
a P-channel MOS FET of a vertical type and is a switching element that can be directly driven by the.

✔ 2SJ355 Features

Can be directly driven by 5-V IC
Low ON resistance RDS(on) = 0.60 Ω MAX. @VGS =
4 V, ID =
1.0 A RDS(on) = 0.35 Ω MAX. @VGS =
10 V, ID =
1.0 A 0.8 MIN. S 0.42 ±0

✔ 2SJ355 Application

of a device depend on its quality grade, as indicated below. Customers must check the quality grade of each
