BB171 VHF variable capacitance diode

BB171 Description

BB171 VHF variable capacitance diode Rev.1 * 25 March 2013 Product data sheet 1.Product profile 1.1 General .
The BB171 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD323 (SC-76) very small SMD plastic package.

BB171 Features

* Excellent linearity
* Very small SMD plastic package
* Cd(28V) = 2.7 pF; Cd(1V) to Cd(28V) ratio = 22

📥 Download Datasheet

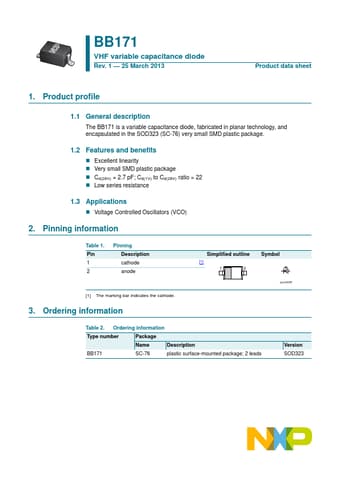

Preview of BB171 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BB171
Manufacturer
NXP ↗
File Size
78.85 KB
Datasheet
BB171-NXP.pdf
Description
VHF variable capacitance diode
