BB173 VHF variable capacitance diode

BB173 Description

BB173 VHF variable capacitance diode Rev.1 * 25 March 2013 Product data sheet 1.Product profile 1.1 General .
The BB173 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD523 (SC-79) ultra small SMD plastic package.

BB173 Features

* Excellent linearity
* Ultra small SMD plastic package
* Cd(28V) = 2.6 pF; Cd(1V) to Cd(28V) ratio = 15

📥 Download Datasheet

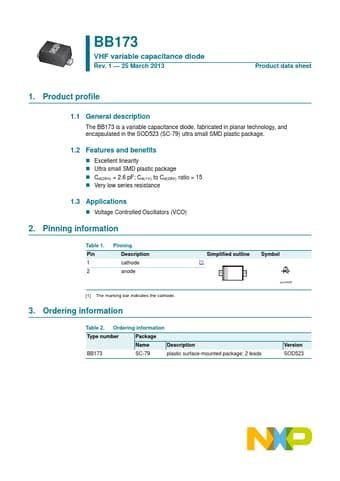

Preview of BB173 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BB173
Manufacturer
NXP ↗
File Size
73.22 KB
Datasheet
BB173-NXP.pdf
Description
VHF variable capacitance diode
