BB174 Datasheet - NXP

BB174, VHF variable capacitance diode

BB174 VHF variable capacitance diode Rev.1 * 25 March 2013 Product data sheet 1.Product profile 1.1 General .
The BB174 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD523 (SC-79) ultra small SMD plastic package.

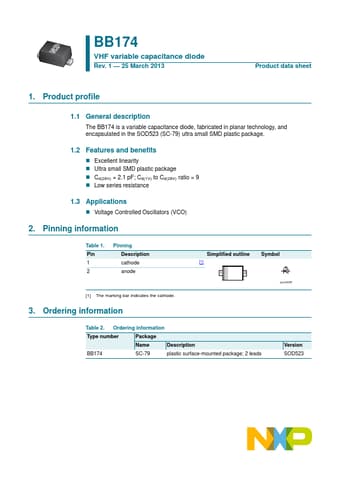

datasheet Preview Page 1 from Datasheet4u.com

BB174-NXP.pdf

Preview of BB174 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

BB174

Manufacturer:

NXP ↗

File Size:

73.27 KB

Description:

VHF variable capacitance diode

Features

* Excellent linearity
* Ultra small SMD plastic package
* Cd(28V) = 2.1 pF; Cd(1V) to Cd(28V) ratio = 9
