BB179 Datasheet - Philipss

UHF variable capacitance diode

BB179 Features

* Excellent linearity

* Excellent matching to 2% DMA

* Ultra small plastic SMD package

* C28: 2.1 pF; ratio: 9

* Low series resistance. APPLICATIONS

* Electronic tuning in UHF television tuners

* Voltage controlled oscillators (VCO). DESCRIPTIO

BB179 General Description

The BB179 is a planar technology variable capacitance diode, in a SOD523 (SC-79) package. The excellent matching performance is achieved by gliding matching and a direct matching assembly procedure. PINNING PIN 1 2 DESCRIPTION cathode anode   MIN. * * * *55

BB179 Datasheet (48.13 KB)

Preview of BB179 PDF

Datasheet Details

Part number:

BB179

Manufacturer:

Philipss

File Size:

48.13 KB

Description:

Uhf variable capacitance diode.

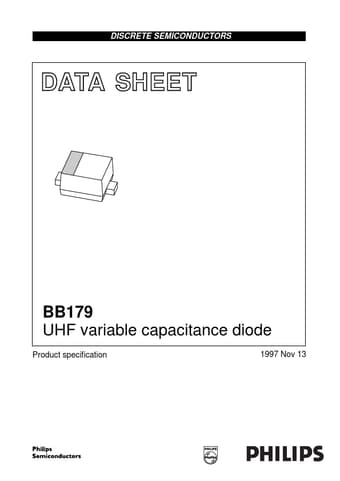

DISCRETE SEMICONDUCTORS DATA SHEET M3D319 BB179 UHF variable capacitance diode Product speciļ¬cation 1997 Nov 13 Philips Semiconductors Product sp.
