BB130 - AM variable capacitance diode

BB130 Description

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D053 BB130 AM variable capacitance diode Product speciļ¬cation Supersedes data of April 1992 File under.
The BB130 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD69 (TO-92 variant) leaded plastic package.

BB130 Features

* Matched to 3%
* Leaded plastic package

BB130 Applications

* Electronic tuning in AM radio applications

📥 Download Datasheet

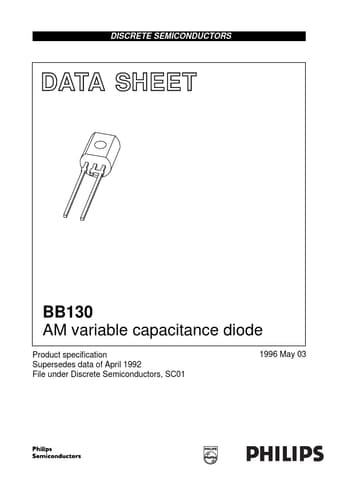

Preview of BB130 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BB130
Manufacturer
Philipss
File Size
29.06 KB
Datasheet
BB130_PhilipsSemiconductors.pdf
Description
AM variable capacitance diode
