BB132 - VHF variable capacitance diode

BB132 Description

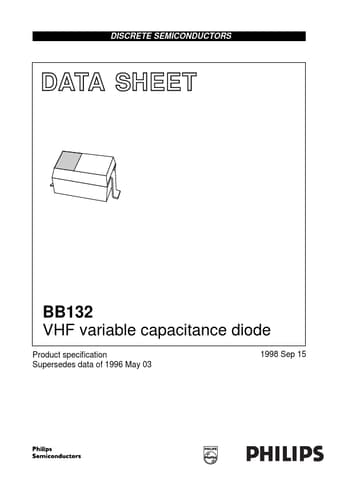

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D049 BB132 VHF variable capacitance diode Product speciļ¬cation Supersedes data of 1996 May 03 1998 Sep.
The BB132 is a variable capacitance diode fabricated in planar technology, and encapsulated in the SOD323 very small plastic SMD package.

BB132 Features

* High linearity
* Excellent matching to 1% DMA
* Very small plastic SMD package

BB132 Applications

* Electronic tuning in VHF television tuners, band A up to 160 MHz

📥 Download Datasheet

Preview of BB132 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BB132
Manufacturer
Philipss
File Size
54.12 KB
Datasheet
BB132_PhilipsSemiconductors.pdf
Description
VHF variable capacitance diode
