BB133 Datasheet - Philipss

VHF variable capacitance diode

BB133 Features

* Excellent linearity

* Excellent matching to 0.7% DMA

* Very small plastic SMD package

* C28: 2.5 pF; ratio: 16

* Low series resistance. MAM130 BB133 handbook, 4 columns k a APPLICATIONS

* Electronic tuning in VHF television tuners, band B up to

BB133 General Description

The BB133 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD323 very small plastic SMD package. The excellent matching performance is achieved by gliding matching and a direct matching assembly procedure. The unmatched type, BB150 has the same specification.

BB133 Datasheet (54.11 KB)

BB133 Datasheet Preview — Preview of BB133 PDF

Datasheet Details

Part number:

BB133

Manufacturer:

Philipss

File Size:

54.11 KB

Description:

Vhf variable capacitance diode.

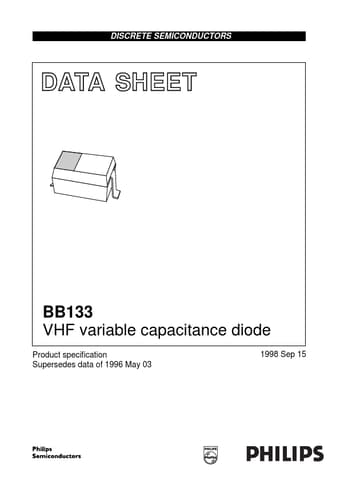

DISCRETE SEMICONDUCTORS DATA SHEET alfpage M3D049 BB133 VHF variable capacitance diode Product speciﬁcation Supersedes data of 1996 May 03 1998 Sep.
