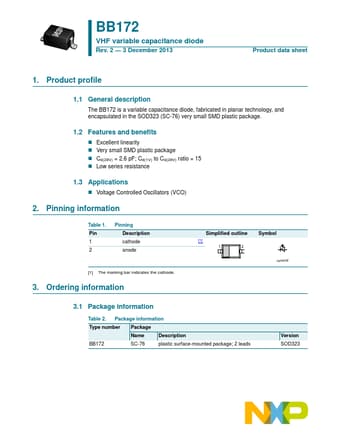

BB172 Datasheet, Diode, NXP

BB172 Features

• Diode
• Excellent linearity
• Very small SMD plastic package
• Cd(28V) = 2.6 pF; Cd(1V) to Cd(28V) ratio = 15
• Low series resistance 1.3 Applications

PDF File Details

Part number:

BB172

Manufacturer:

NXP ↗

File Size:

98.63kb

Download:

📄 Datasheet

Description:

Vhf variable capacitance diode. The BB172 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD323 (SC-76) very small SMD pla

BB172 Application

• Applications
• Voltage Controlled Oscillators (VCO) 2. Pinning information Table 1. Pin 1 2 Pinning Description cathode anode [1] The ma
