BFG94

NPN 6 GHz wideband transistor

NXP

BFG94 Features

* High power gain

* Low noise figure

* Low intermodulation distortion

* Gold metallization ensures excellent reliability. DESCRIPTION NPN transistor mounted in a plastic SOT223 envelope. It is primarily intended for use in communication and instrumentation systems. 1

BFG94 General Description

NPN transistor mounted in a plastic SOT223 envelope. It is primarily intended for use in communication and instrumentation systems. 1 Top view BFG94 PINNING PIN 1 2 3 4 base emitter collector DESCRIPTION emitter page 4 2 3 MSB002 - 1 Fig.1 SOT223. QUICK REFERENCE DATA SYMBOL VCBO VCEO IC Ptot.

BFG94 Datasheet (100.41 KB)

BFG94 Datasheet Preview — Preview of BFG94 PDF

Datasheet Details

Part number:

BFG94

Manufacturer:

NXP ↗

File Size:

100.41 KB

Description:

Npn 6 ghz wideband transistor.

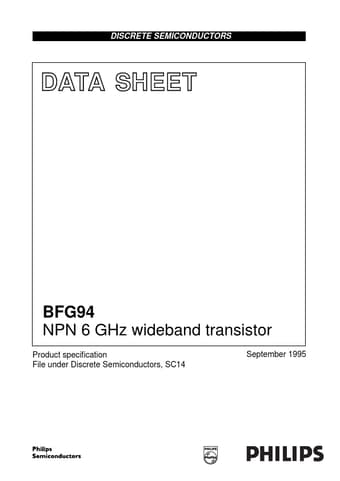

DISCRETE SEMICONDUCTORS DATA SHEET BFG94 NPN 6 GHz wideband transistor Product speciﬁcation File under Discrete Semiconductors, SC14 September 1995 .
