PBSS3515M Datasheet - NXP

PNP Transistor

PBSS3515M Features

* Low collector-emitter saturation voltage VCEsat

* High collector current capability IC and ICM

* High efficiency leading to reduced heat generation

* Reduced printed-circuit board requirements. APPLICATIONS

* Power management:

* DC-DC converter

PBSS3515M General Description

Low VCEsat PNP transistor in a SOT883 leadless ultra small plastic package. NPN complement: PBSS2515M. QUICK REFERENCE DATA SYMBOL PARAMETER VCEO IC ICM RCEsat collector-emitter voltage collector current (DC) peak collector current equivalent on-resist.

PBSS3515M Datasheet (77.78 KB)

PBSS3515M Datasheet Preview — Preview of PBSS3515M PDF

Datasheet Details

Part number:

PBSS3515M

Manufacturer:

NXP ↗

File Size:

77.78 KB

Description:

Pnp transistor.

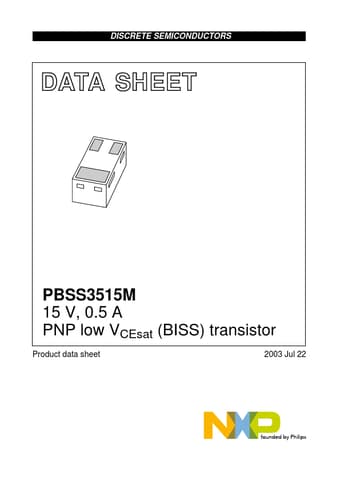

DISCRETE SEMICONDUCTORS DATA SHEET BOTTOM VIEW M3D883 PBSS3515M 15 V, 0.5 A PNP low VCEsat (BISS) transistor Product data sheet 2003 Jul 22 NXP .
