PBSS3540F Datasheet - NXP

low VCEsat PNP transistor

PBSS3540F Features

* Low collector-emitter saturation voltage

* High current capability

* Improved thermal behaviour due to flat leads

* Enhanced performance over SOT23 general purpose transistors. APPLICATIONS

* General purpose switching and muting

* Low frequency drive

PBSS3540F General Description

PNP low VCEsat transistor in a SC-89 (SOT490) plastic package. NPN complement: PBSS2540F. MARKING TYPE NUMBER PBSS3540F MARKING CODE 2D Fig.1 QUICK REFERENCE DATA SYMBOL VCEO ICM RCEsat PINNING PIN 1 2 3 base emitter collector PARAMETER PBSS3540F MAX. *40 *1 <700 UNIT V A mΩ coll.

PBSS3540F Datasheet (76.94 KB)

PBSS3540F Datasheet Preview — Preview of PBSS3540F PDF

Datasheet Details

Part number:

PBSS3540F

Manufacturer:

NXP ↗

File Size:

76.94 KB

Description:

Low vcesat pnp transistor.

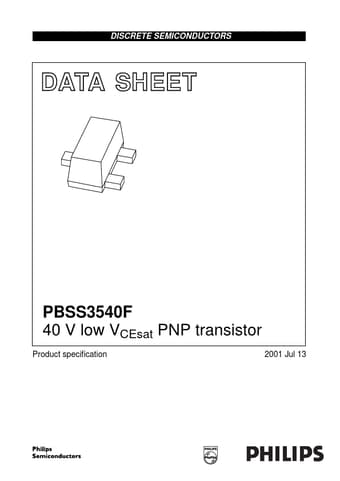

www.DataSheet4U.com DISCRETE SEMICONDUCTORS DATA SHEET M3D425 PBSS3540F 40 V low VCEsat PNP transistor Product speciﬁcation 2001 Jul 13 Philips S.
