PBSS3515MB - PNP Transistor

nexperia

The PBSS3515MB by nexperia is a PNP Transistor. Below is the official datasheet preview.

📥 Download Datasheet

PBSS3515MB PNP Transistor by nexperia - Datasheet Preview — Official preview page of the PBSS3515MB PNP Transistor datasheet (nexperia).

Datasheet Details

Part number	PBSS3515MB
Manufacturer	nexperia
File Size	1.05 MB
Description	PNP Transistor
Datasheet	PBSS3515MB-nexperia.pdf

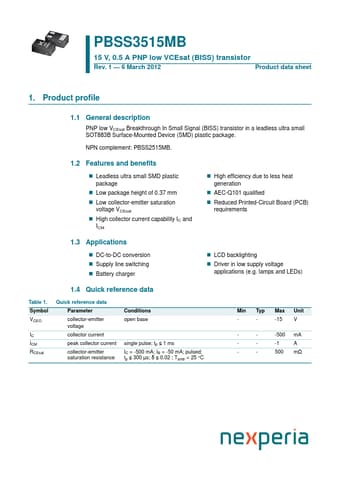

Additional preview pages of the PBSS3515MB datasheet.

PBSS3515MB Product details

Description

PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a leadless ultra small SOT883B Surface-Mounted Device (SMD) plastic package.

Features

Leadless ultra small SMD plastic package.
Low package height of 0.37 mm.
Low collector-emitter saturation voltage VCEsat.
High collector current capability IC and ICM 1.3.
