PBSS3540MB - PNP transistor

nexperia

The PBSS3540MB by nexperia is a PNP transistor. Below is the official datasheet preview.

📥 Download Datasheet

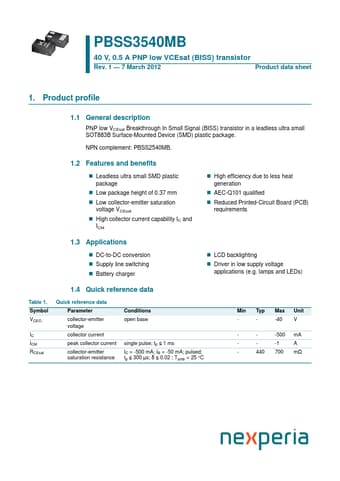

PBSS3540MB PNP transistor by nexperia - Datasheet Preview — Official preview page of the PBSS3540MB PNP transistor datasheet (nexperia).

Datasheet Details

Part number	PBSS3540MB
Manufacturer	nexperia
File Size	0.97 MB
Description	PNP transistor
Datasheet	PBSS3540MB-nexperia.pdf
Additional preview pages of the PBSS3540MB datasheet.

PBSS3540MB Product details

Description

PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a leadless ultra small SOT883B Surface-Mounted Device (SMD) plastic package.

Features

Leadless ultra small SMD plastic package.
Low package height of 0.37 mm.
Low collector-emitter saturation voltage VCEsat.
High collector current capability IC and ICM 1.3.
