PBSS5112PAP, PNP/PNP low VCEsat (BISS) transistor

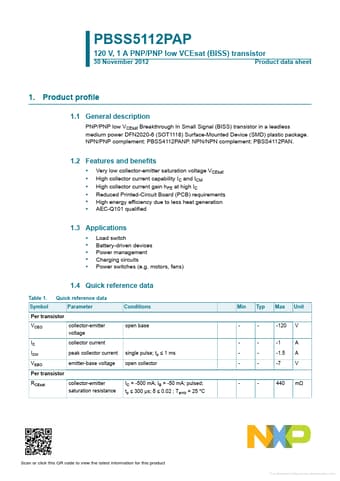

PBSS5112PAP 30 November 2012 120 V, 1 A PNP/PNP low VCEsat (BISS) transistor Product data sheet 1.Product profile 1.1 General .
PNP/PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a leadless medium power DFN2020-6 (SOT1118) Surface-Mounted Device (SMD) plastic.

datasheet Preview Page 1 from Datasheet4u.com

PBSS5112PAP_NXP.pdf

PBSS5112PAP Datasheet Preview — Preview of PBSS5112PAP PDF

Datasheet Details

Part number:

PBSS5112PAP

Manufacturer:

NXP ↗

File Size:

271.44 KB

Description:

PNP/PNP low VCEsat (BISS) transistor

Features

* Very low collector-emitter saturation voltage VCEsat
* High collector current capability IC and ICM
* High collector current gain hFE at high IC
* Reduced Printed-Circuit Board (PCB) requirements
* High energy efficiency due to less heat generation

Applications

* Load switch
* Battery-driven devices
* Power management
* Charging circuits
* Power switches (e. g. motors, fans) 1.4 Quick reference data Table 1. Symbol Per transistor VCEO IC ICM VEBO Per transistor RCEsat collector-emitter saturation resistance IC = -500
