PBSS5130PAP, PNP/PNP low VCEsat (BISS) transistor

PBSS5130PAP 12 December 2012 30 V, 1 A PNP/PNP low VCEsat (BISS) transistor Product data sheet 1.General .
PNP/PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a leadless medium power DFN2020-6 (SOT1118) Surface-Mounted Device (SMD) plastic.

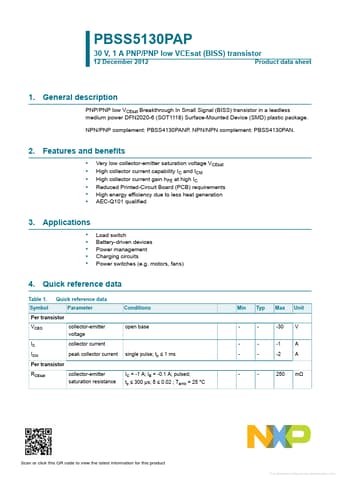

datasheet Preview Page 1 from Datasheet4u.com

PBSS5130PAP_NXP.pdf

PBSS5130PAP Datasheet Preview — Preview of PBSS5130PAP PDF

Datasheet Details

Part number:

PBSS5130PAP

Manufacturer:

NXP ↗

File Size:

270.83 KB

Description:

PNP/PNP low VCEsat (BISS) transistor

Features

* Very low collector-emitter saturation voltage VCEsat High collector current capability IC and ICM High collector current gain hFE at high IC Reduced Printed-Circuit Board (PCB) requirements High energy efficiency due to less heat generation

Applications

* Load switch Battery-driven devices Power management Charging circuits Power switches (e. g. motors, fans) 4. Quick reference data Table 1. Symbol Per transistor VCEO IC ICM Per transistor RCEsat collector-emitter saturation resistance IC = -1 A; IB =
