PBSS5140D

40 V low VCEsat PNP transistor

NXP

PBSS5140D Features

* Low collector-emitter saturation voltage

* High current capability

* Improved device reliability due to reduced heat generation. APPLICATIONS

* General purpose switching and muting

* LCD back-lighting

* Supply line switching circuits

* Batter

PBSS5140D General Description

PNP low VCEsat transistor in an SC-74 (SOT457) plastic package. MARKING TYPE NUMBER PBSS5140D MARKING CODE 51 1 Top view PBSS5140D QUICK REFERENCE DATA SYMBOL VCEO IC ICM RCEsat PINNING PIN 1 2 3 4 5 6 collector collector base n.c. collector emitter DESCRIPTION PARAMETER collector-emitter voltage c.

PBSS5140D Datasheet (61.43 KB)

PBSS5140D Datasheet Preview — Preview of PBSS5140D PDF

Datasheet Details

Part number:

PBSS5140D

Manufacturer:

NXP ↗

File Size:

61.43 KB

Description:

40 v low vcesat pnp transistor.

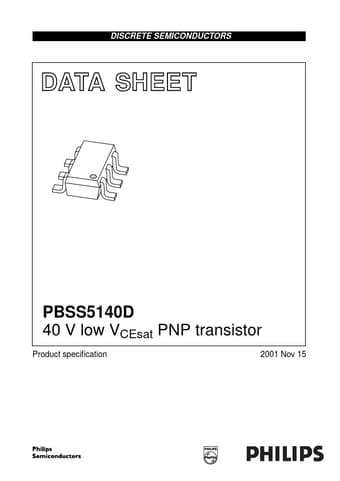

DISCRETE SEMICONDUCTORS DATA SHEET halfpage M3D302 PBSS5140D 40 V low VCEsat PNP transistor Product speciﬁcation 2001 Nov 15 Philips Semiconductor.
