PBSS5140U

40 V low VCEsat PNP transistor

NXP

PBSS5140U Features

* Low collector-emitter saturation voltage

* High current capability

* Improved device reliability due to reduced heat generation

* Enhanced performance over SOT23 1A standard packaged transistor. APPLICATIONS

* General purpose switching and muting

* L

PBSS5140U General Description

PNP low VCEsat transistor in a SOT323 (SC-70) plastic package. MARKING 1 2 PBSS5140U QUICK REFERENCE DATA SYMBOL VCEO ICM RCEsat PINNING PIN 1 2 3 base emitter collector DESCRIPTION PARAMETER collector-emitter voltage peak collector current equivalent on-resistance MAX.

*40

*2 <500 .

PBSS5140U Datasheet (67.75 KB)

PBSS5140U Datasheet Preview — Preview of PBSS5140U PDF

Datasheet Details

Part number:

PBSS5140U

Manufacturer:

NXP ↗

File Size:

67.75 KB

Description:

40 v low vcesat pnp transistor.

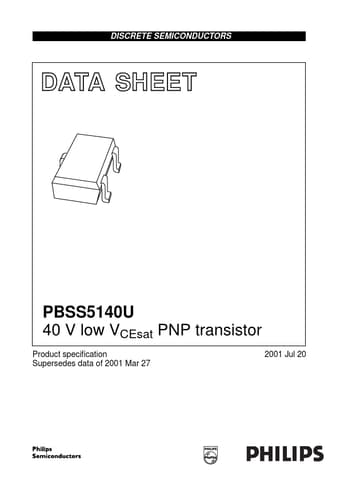

DISCRETE SEMICONDUCTORS DATA SHEET ge M3D102 PBSS5140U 40 V low VCEsat PNP transistor Product speciﬁcation Supersedes data of 2001 Mar 27 2001 Jul .
