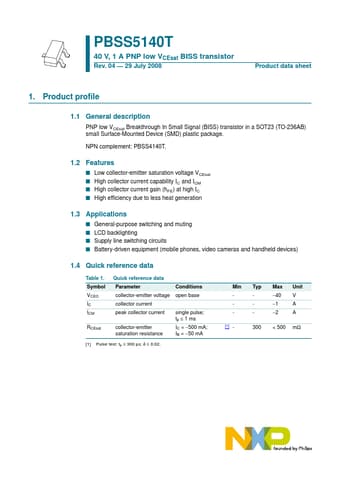

PBSS5140T Datasheet, Transistor, NXP

PBSS5140T Features

• Transistor I Low collector-emitter saturation voltage VCEsat I High collector current capability IC and ICM I High collector current gain (hFE) at high IC I High efficiency due to less heat generat

PDF File Details

Part number:

PBSS5140T

Manufacturer:

NXP ↗

File Size:

88.02kb

Download:

📄 Datasheet

Description:

Pnp transistor. PNP low VCEsat Breakthrough In Small Signal (BISS) transistor in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic packag

PBSS5140T Application

• Applications I General-purpose switching and muting I LCD backlighting I Supply line switching circuits I Battery-driven equipment (mobile phones, v
