TJA1080

FlexRay transceiver

TJA1080 Features

* 2.1 Optimized for time triggered communication systems I Data transfer up to 10 Mbit/s I Usable for 14 V and 42 V powered systems I Very low ElectroMagnetic Emission (EME) to support unshielded cable I Differential receiver with high common-mode range for ElectroMagnetic Immunity (EMI) I Transceiver

TJA1080 General Description

The TJA1080 is a FlexRay transceiver, which is in line with the FlexRay electrical physical layer specification V2.1 Rev. A (see Ref. 1). It is primarily intended for communication systems from 1 Mbit/s to 10 Mbit/s, and provides an advanced interface between the protocol controller and the physical .

TJA1080 Datasheet (198.22 KB)

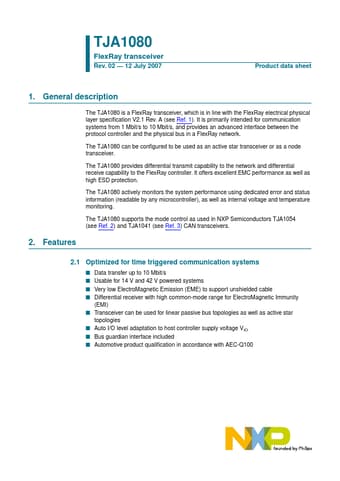

Preview of TJA1080 PDF

Datasheet Details

Part number:

TJA1080

Manufacturer:

NXP ↗

File Size:

198.22 KB

Description:

Flexray transceiver.
