TJA1081 - FlexRay Node Transceiver

Product Overview

NXP

Part number	TJA1081
Manufacturer	NXP
File Size	273.10 KB
Description	FlexRay Node Transceiver
Datasheet	TJA1081 Datasheet

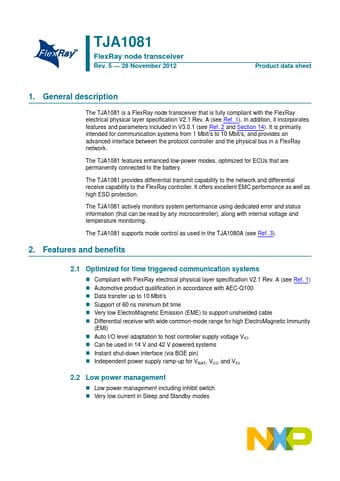

Additional preview pages of the TJA1081 datasheet.

The TJA1081 is a FlexRay node transceiver that is fully compliant with the FlexRay electrical physical layer speciﬁcation V2.1 Rev.

and parameters anticipated to be included in V3.0, currently being ﬁnalized. It is primarily intended for communication systems from 1 Mbit/s to 10 Mbit/s, and provides an advanced interface between the protocol controller and the physical bus in a FlexRay network. The TJA1081 features enhanced low-power modes, optimized for ECUs that are permanently connected to the battery. The TJA1081 provides differential transmit capability to the network and differential receive capability to the FlexRay c.
