TJA1081G

FlexRay node transceiver

TJA1081G Features

* 2.1 Optimized for time triggered communication systems

* Compliant with ISO 17458-4:2013 (see Ref. 2)

* Automotive product qualification in accordance with AEC-Q100

* Data transfer rates from 2.5 Mbit/s to 10 Mbit/s

* Very low ElectroMagnetic Emissions (EME) to support unshielded cab

TJA1081G General Description

The TJA1081G is a FlexRay transceiver that is fully compliant with FlexRay electrical physical layer specification ISO 17458-4:2013 (see Ref. 1 and Ref. 2). It is intended for communication systems from 2.5 Mbit/s to 10 Mbit/s and provides an advanced interface between the protocol controller and th.

TJA1081G Datasheet (651.25 KB)

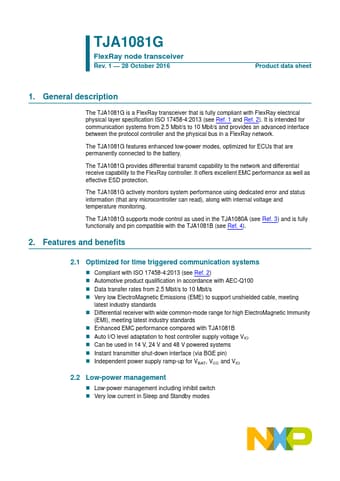

Preview of TJA1081G PDF

Datasheet Details

Part number:

TJA1081G

Manufacturer:

NXP ↗

File Size:

651.25 KB

Description:

Flexray node transceiver.
