TJA1086G

FlexRay active star coupler

TJA1086G Features

* 2.1 General

* Compliant with FlexRay Electrical Physical Layer specification V3.0.1/ISO17458-4

* Automotive product qualification in accordance with AEC-Q100

* Data transfer rates from 2.5 Mbit/s to 10 Mbit/s

* Supports 60 ns minimum bit time at 400 mV differential voltage

* Low-

TJA1086G General Description

The TJA1086G is a FlexRay active star coupler that connects two branches of a FlexRay network. The TJA1086G is compliant with the FlexRay electrical physical layer specification V3.0.1/ISO17458-4 (see Ref. 1 and Ref. 2). Several TJA1085G and TJA1086G devices can be connected via their TRXD0/1 interf.

TJA1086G Datasheet (398.03 KB)

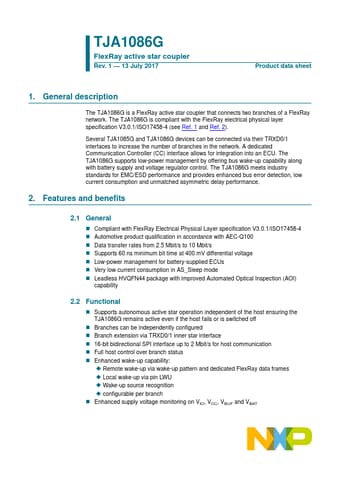

Preview of TJA1086G PDF
